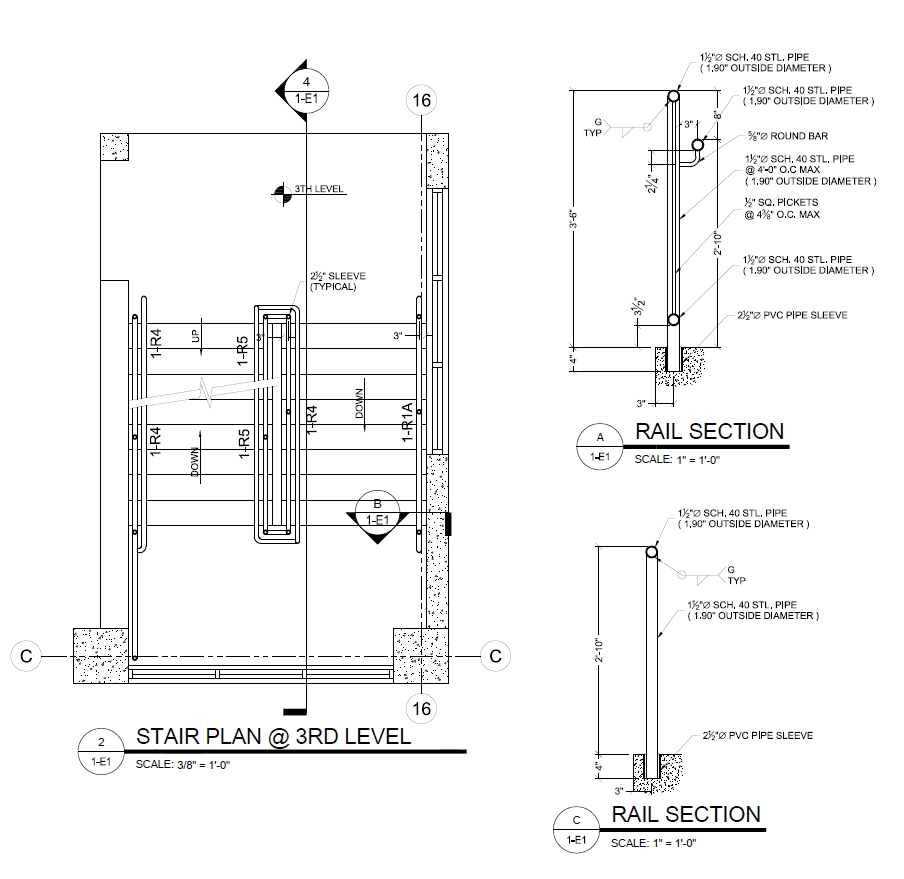

Shop drawings
Structural steel and miscellaneous metals. The sheets the shop cuts, welds, and ships from.
A shop drawing is produced by the contractor, supplier, manufacturer, subcontractor, or fabricator. We are that drawing room for structural and misc. metals — stairs, rails, embeds, frames, supports.
Typical components: structural steel, trusses, stairs, rails, embeds, miscellaneous metals, and the connections the shop cannot guess. Stamps and calculations when they are in the scope — columns, beams, tension members, welds, and bolted connections.
If the contract drawings disagree with themselves, we email you. You get the answer or you give direction. We do not invent the missing dimension.
